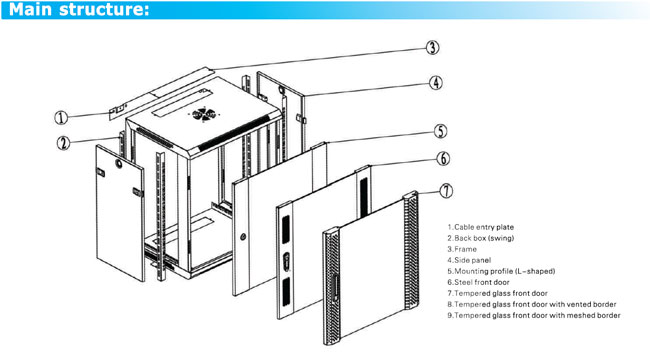

The cabinet features a welded frame that provides a stable structure with precise craftsmanship. It supports single selection and is compatible with 19" standard equipment. The tempered-glass front door opens to more than 180 degrees. The removable side panel enables easy installation and maintenance (lock optional). Cable entry is provided on the top cover and the bottom panel with a knock-out plate. An L-shaped mounting profile is easy to adjust on the mounting rail. A fan cut-out on the top cover allows quick fan installation. An installing back panel is included to make wall mounting straightforward. Various accessories are available.

Standard Compliance
Complies with ANSI/EIA RS-310-D, IEC 297-2, DIN 41497 Part 1, DIN 41494 Part 7, and GB/T 3047.2-92.

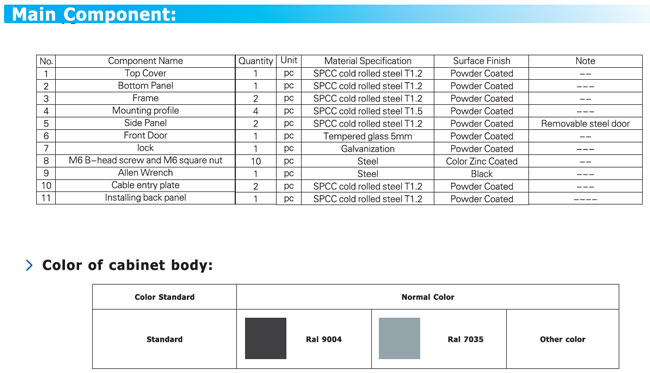

Material and Construction
SPCC quality cold-rolled steel.
Thickness: Mounting profile 1.5mm; other parts 1.2mm.

Performance and Protection
Static load capacity: 60kg.
Degree of protection: IP20.

Surface Finish
Degreased, pickled, phosphated, and powder-coated.
