Image is illustrative
|
Free-Standing Rack 19in, 32U 600Wx1620Hx600D, toughened glass front door, removable side panels, cable entry on the top, bottom, incl. adj. feet, castors, max. load 800kg, flatpack, grey Code:
A2.6632.9000
Price
Manufacturer
:
|
Availability:
Express, 2 days
|
Weight:
0.1234 kg/pc
|
|
|
|
|
|
|
Standard
Complies with ANSI/EIA RS-310-D, IEC297-2, DIN41494;PART 1, DIN41494;PART 7, ETSI standard.
Feature
Toughened glass front door with non-vented border and round lock.
Solid steel rear door with round lock.
Zinc-coated mounting profiles.
Adjustable feet and heavy-duty castors are supplied.
Cable entry on the top cover and base plate with adjustable sizes.
Optional plinth for extra ventilation and easier cabling.
Reliable cabinet interconnection using a baying kit.
Removable side panels, easy to install and remove. Key locks available as an accessory.
Main material
SPCC cold-rolled steel.
Thickness: mounting angle 2.0mm.
Depth rails 1.5mm; others 1.2mm.
Surface finish
Degreased, phosphoric dip-coated and powder-coated.
Loading capacity
Static loading 800kg (with adjustable feet).
|

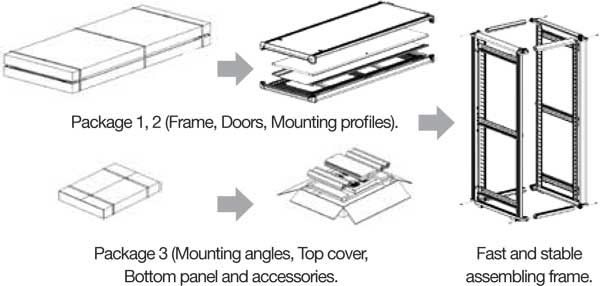

1. Flat pack – each cabinet is delivered within 3 packages.
2. Two side frames are pre-assembled; when assembling, remove side panels.
3. Use 8 bolts to connect the two side frames and four mounting profiles – the cabinet frame is now ready.
4. Fix top cover, bottom panels, front door, rear door, side panels and accessories – assembly complete.
|
|
|
|
