Relay socket FS 4CO for DRM (screw) Weidmüller

Accessories for D-SERIES relays include:

Technical data:

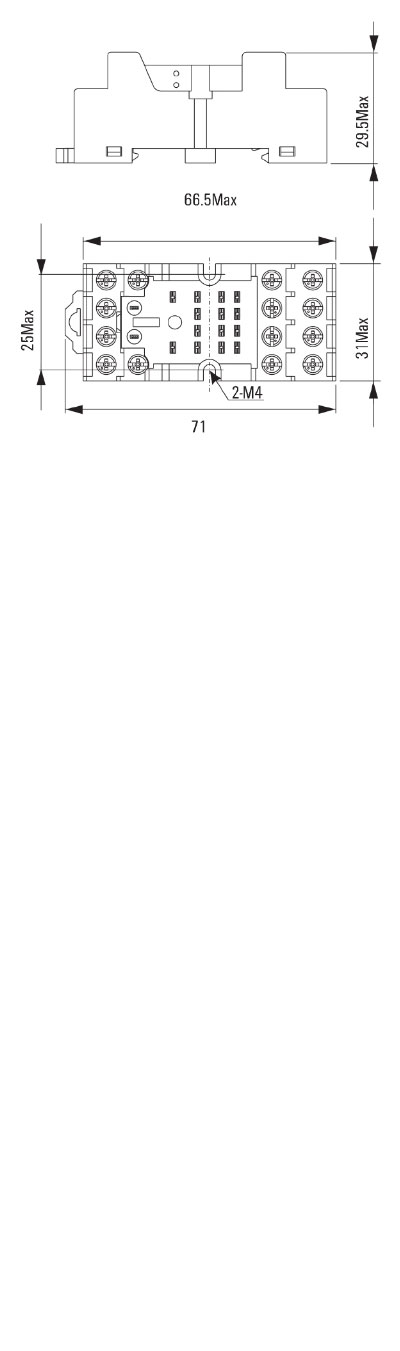

Dimensions and weights:	Width: 31 mm Height: 71 mm Depth: 29.5 mm Weight: 43 g Net weight: 48.1 g
Temperatures:
Storage temperature:	-40°C...+70°C
Operating temperature:	-40°C...+70°C
Output:
Max. switching voltage, AC:	300 V
Continuous current:	10 A
General data:
Wire connection method:	Screw connection
Weight:	43 g
Wire cross-section, solid, max.:	2.5 mm²
Connection data:
Clamping range, rated connection, max.:	2.5 mm²
Clamping range, rated connection, min.:	0.5 mm²
Conductor cross-section, flexible, AEH(DIN 46228-1), max.:	2.5 mm²
Conductor cross-section, flexible, AEH(DIN 46228-1), min.:	0.5 mm²
Cross-section for connected conductor,finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min.:	0.5 mm²
Tightening torque, max.:	0.8 Nm
Tightening torque, min.:	0.5 Nm
Wire connection cross section, finely stranded, two clampable wires, max.:	2.5 mm²
Wire connection cross section, finely stranded, two clampable wires, min.:	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max.:	1.5 mm²
Wire connection cross-section, finely stranded, min.:	0.5 mm²
Wire connection method:	screw connection
Wire cross-section, finely stranded, two clampable wires, max.:	2.5 mm²
Wire cross-section, solid, max.:	2.5 mm²
Wire cross-section, solid, min.:	0.5 mm²
Classifications:
eClass 6.2:	27-37-16-01
