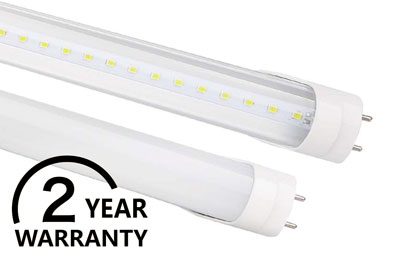

LED Tube T8/1200 18W 2160lm 4500K rotatable-end, single end powered, frosted, Oritex

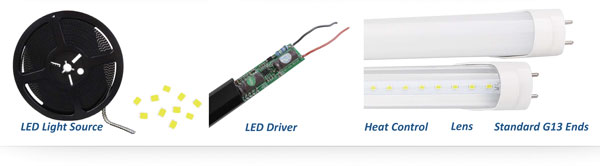

LED Light source:

Professional encapsulated SMD2835 with high-quality LED chip makes the LED Tube Light source obtaining
excellent protection of optical attenuation and heat conduction ratio.

LED Driver:

Utilizing high quality constant-current LED driver with great luminaire stability, lifespan& Optimal Performance Status.

Heat Control:

Heat Conduction

Use of the good thermal grease combining PCB and aluminium radiator closely, keeps every LED Tube Light obtaining
optimal effects of heat dissipation.

Heat Dissipation

Lens:

Standard G13 Ends

Stationary and rotatable ends could be optional according to various applications.

Benefits:
LED 18W replacement for FL 36W

Electrical Specifications:
Nominal Wattage:	22W
LED Type, Quantity::	SMD2835, 132pcs
Nominal Voltage:	AC 100-240V, 50/60Hz
Optimal Operating Temperature:	-40 °C to +50 °C
Power Factor (PF):	>0.9
Driver Efficiency:	85%

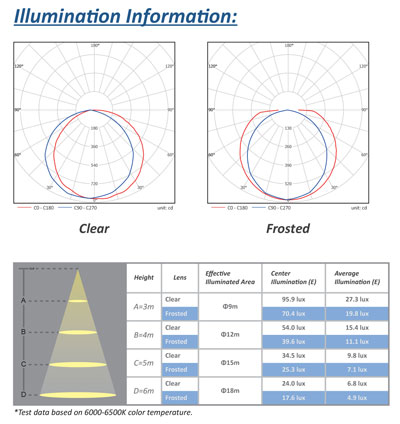

Photometric Spetcifications:
Lumen Output:	†c - clear, f - frosted ††Lumen tolerance +/- 5%
3000-4500K:	1980 lm - c, 1760 lm - f
5000-6500K:	2160 lm - c, 1980 lm - f
CRI:	Ra >= 80
CCT:
Mechanical Specifications:
IP Rating:	IP 20
Lifetime:	50 000 hours
Heat Radiator:	Anodized Aluminum
Lens:	Clear /Frosted PC

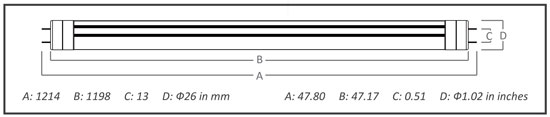

Fixture Dimension:	1214 x26 x32 mm/ 47.80 x1.02 x1.26 inches
Fixture Weight:	0.41 kg /0.904 lbs
Packing Information:
Packing Type:	20 unit/ctn.
Packing Dimension:	1230 x170 x145 mm/ 48.43 x6.69 x5.71 inches
Packing Weight:	10.2 kg (22.5 lbs)
