Autotransformer Fan Speed Controller ARW 1.5/S 1.5A 230VAC, aux. output 2A 230VAC, fuse protected, switch| backlight, PM| 5steps/ 230-180-155-135-115V, cl. II, IP54 Code:
17886-9974
Price
Manufacturer
:
|
Availability:
21 days
|
Weight:
2.0 kg/pc
|
Volume:
0.0042 m3/pc
|
|
|
|
|
Autotransformer regulators serve the purpose of airflow control, fitted in single-phase ventilation and heating systems. The transformers are made with Class II insulation and protection grade IP54.
The maximum ambient temperature is 40°C and thermal class of insulation B.
Manufactured in compliance with EN 61558-2-13.
Notes:

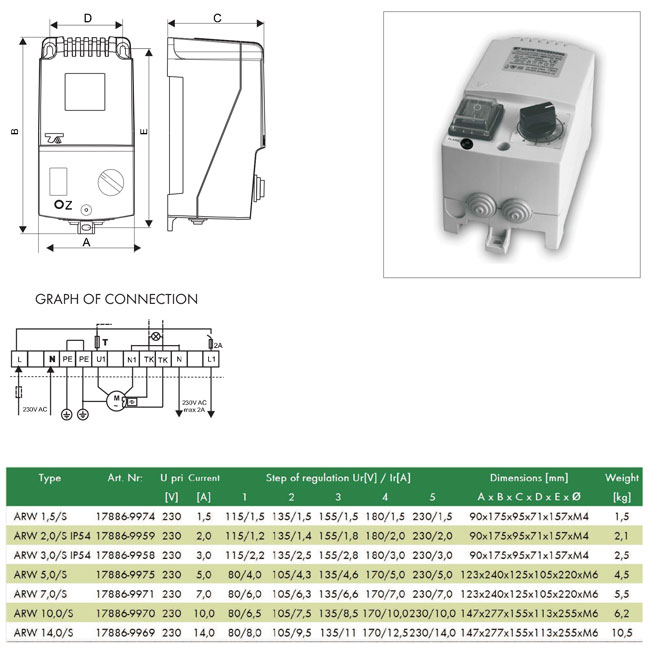

U1N1 - fuse protected, regulated output for motor; NL1 - fuse protected, 2A unregulated 230V voltage;
TK - motor protection from overheating (thermal contacts on the motor).
Rated current SEC: 1,5 - 14A
Rated voltage PRI: 230V 50/60Hz
Rated voltage SEC: 5step regulation
|
|
File description
|
File type
|
Download link
|
|
|
|
|
|
Product data sheet
|
PDF
|
Download link
|
|
|
|
|
|
