Product index > Enclosures, cabinets and components > Power Management > Transformers

Image is illustrative

Electronic Fan Speed Controller ARES, 10A 1x 105..230VAC ±5%, switch| backlight, PM| stepless speed regulation, 10s KickStart, IP54

Code: 17886-9966

Price

180,00 € /pc

Manufacturer :

Breve

Availability:

14 days

Weight:

0.062 kg/pc

Volume:

0.0015 m3/pc

Electronic Fan Speed Controller ARES 10A 1f 230V IP54

Name: Electronic Fan
Brand: Breve
SKU: 17886-9966
Price: 180.00 EUR
Availability: InStock

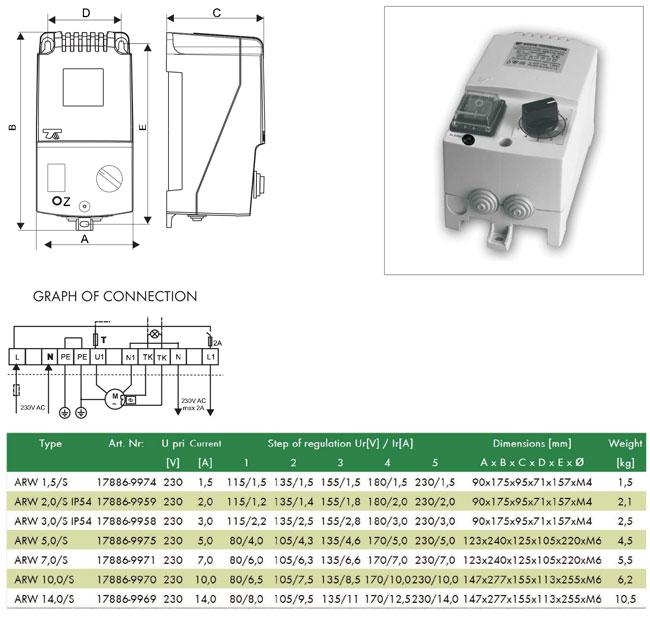

Autotransformer regulators serve the purpose of airflow control, fitted in single-phase ventilation and heating systems. The transformers are made with Calss II insulation and protection grade IP54. The maximum ambient temperature is 40°C and thermal class of insulation B.
Manufactured in compliance with EN 61558-2-13.
Notes:
U₁N₁ - fuse protected, regulated output for motor; NL₁ - fuse protected, 2A unregulated 230V voltage;
TK - motor protection from overheating (thermal contacts on the motor).

Rated current SEC: 1,5 - 14A
Rated voltage PRI: 230V 50/60Hz
Rated voltage SEC: 5step regulation
